THE INFORMAL DETAIL: CLUMSY CRAFT  & ODD TECTONICS

Detail for a thick wall assembly stuffed with raw cork bark and straw.

Scaled model of a thick wall system stuffed with raw cork bark and straw. Giving thermal capacity primary design agency, the wall system is over 6 feet thick and achieves well beyond a 100 R-Value.

Detail assemblages interrogating the spatial ramifications for loose tectonic logics and other informalities.

Full-scale prototype of a column made up of angled timber members and stuffed with straw and flora.

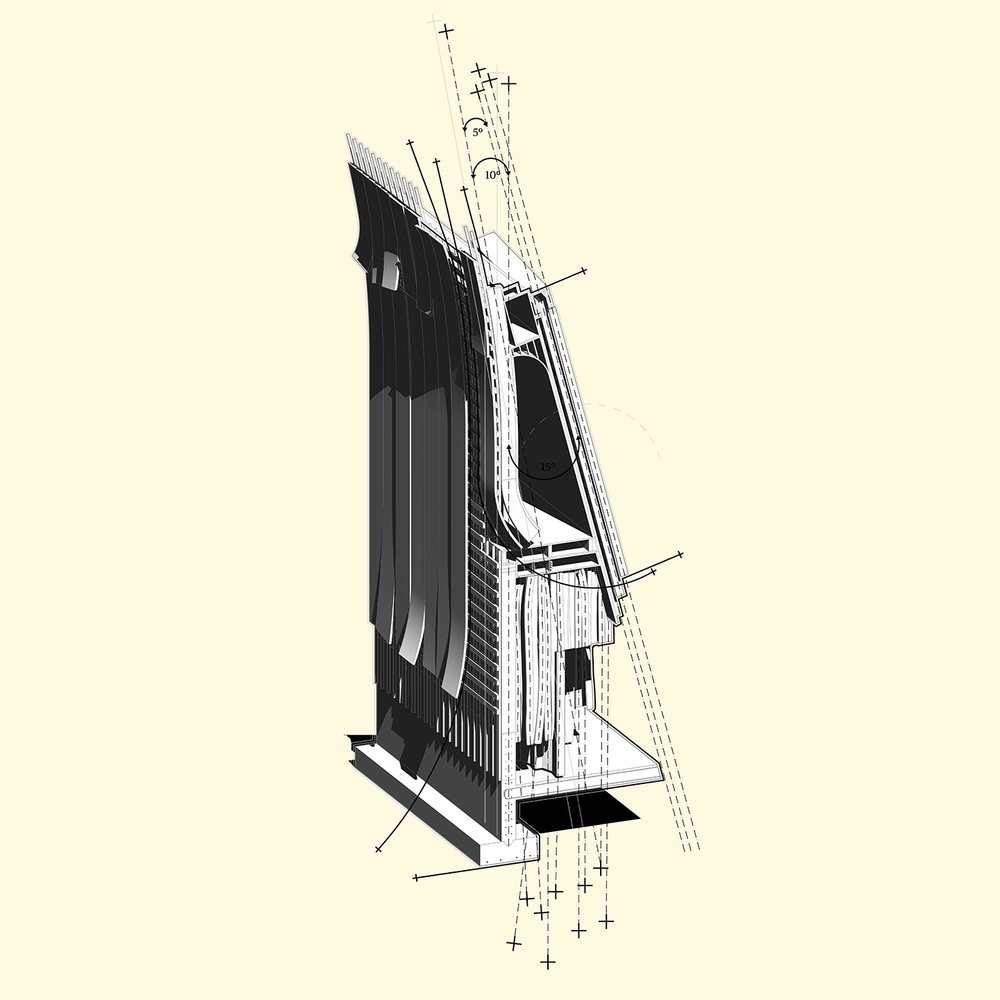

Detail for a timber-framed box suspending timber members below, allowing movement and dangling.

Full-scale material prototype of a sheared cork panel. Raw cork bark is 50% air by volume due to its cellular nature, rendering it a great sound and thermal insulator.

This thesis attempts to theorize the architectural detail as a point of departure for the design process. It ascribes value to informality and in turn produces an aesthetic of looseness and precarity that devalues conventional architectural order in favor of material intensity and local, object-to-object relationships.

The following project revolves much of its conversation around craft and making, and how certain operations and procedures throughout this process can produce an aesthetic. While the project capitalizes on the usage of the terms clumsy and odd, these two aesthetic categories are meant to be interrogated on a technical level to guide material explorations as well as uncommon spatial and organizational principles; the project is less interested in their ability to provoke feeling and affect. The thesis explores the design of a technique rather than a finished building.

While the conventional architectural detail operates on a deep appreciation of material culture and history, this thesis emphasizes the use of humble materials in their raw and unpolished forms in a way that differs from their common, post-processed state to produce details that are formally and aesthetically informal. Likewise, while the conventional architectural detail normalizes precision to institute value in how systems and their components come together, this thesis leverages the informality of details to establish larger-scaled organizational moves that lack dexterity and generate precarious assemblages. The resultant combinatory logic of clumsy craft and odd tectonics claims value in a contemporary aesthetic that questions traditional understandings of material culture and architectural organizational strategies.

Project Date: August 2022 - May 2023
Thesis Advisor: Nate Hume
Outside Council: Clark Thenhaus

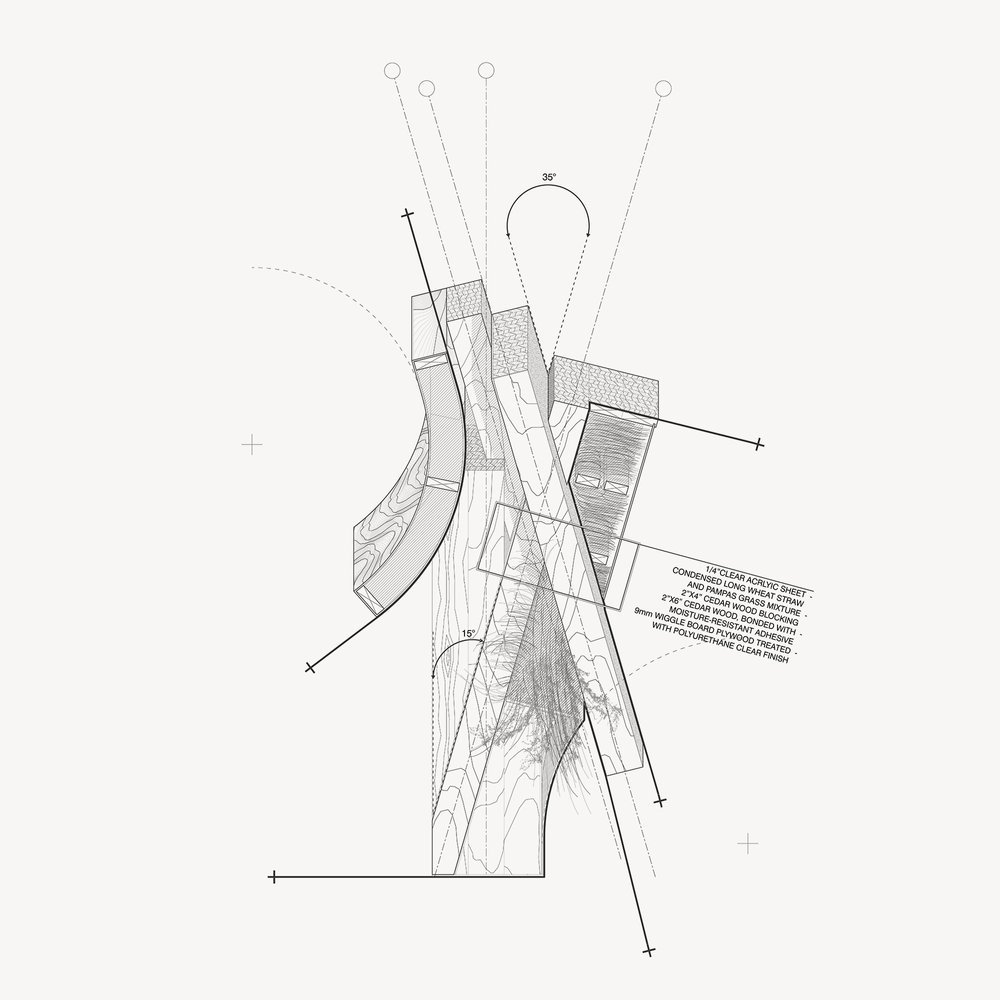

Detail for a column made up of angled timber members and stuffed with foliage.

Full-scale prototype of a timber-framed box suspending timber members below, allowing movement and dangling.
